Acopower 100W Monocrystalline Solar Panel Kit - All Black 200W 20A PWM Charge Controller for Off-Grid Power, RV, Boat & Home Backup

Save 45%

Acopower 100W Monocrystalline Solar Panel Kit - All Black 200W 20A PWM Charge Controller for Off-Grid Power, RV, Boat & Home Backup | Portable Solar Energy System

Sku: 21823753 in stock

$164.39

$298.9

45% Off

Delivery & Return: Free shipping on all orders over $50

Estimated Delivery: 10-15 days international

18 people viewing this product right now!

Guranteed safe checkout

Description

Acopower 100w mono kit All Black 200w 20A PWM

Taking a trip in your RV can create lifetime memories. Don't let traditional gas powered generators or power hookups slow you down. ACOPower 200Watt 20A Mono Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels also allow you to run limited low watt electrical equipment without a power hookup.

Solar Starter Kit

The 200W solar panel kit is an all-inclusive package, making it an ideal choice for beginners and customers seeking convenience. It includes 2pcs 100W poly solar panels, a 30A charge controller, 2 sets of mounting z brackets, 30ft 12AWG PV cable, 8ft 8AWG tray cable, cable entry housing, and a 1Y2 branch connector.

Ideal Choice for Permanent Installation

The advanced laminated technology and durable ETFE material of the 100W polycrystalline solar panel support high light transmittance, are scratch-resistant, and easy to clean. The anti-reflection tempered glass and corrosion-resistant aluminum frame enhance safety and impact resistance, allowing each panel to withstand high wind (2400Pa) and snow loads (5400Pa). Perfect for permanent or semi-permanent installations.

Monitor & Protect Devices

The 20A MPPT utilizes maximum power point tracking technology and automatically adjusts charging profiles based on ambient temperatures. This ensures optimal charging in any condition and protects against over-charge, over-discharge, overload, and short circuit. User programmable for battery types, load control, etc., via PC software or the remote meter MT-50.

Wide Application & Compatible

The solar panel kit is designed for various applications such as RVs, cabins, rooftops, caravans, sheds, greenhouses, boats, and remote power use. It can be connected in parallel for 12V battery charging or in series for 24V battery charging. Compatible with lead-acid, AGM, gel, and lithium batteries. The 30A MPPT of the 200 Watts RV kit allows expansion to 780W in series and 390W in parallel.

Features:

Easy Installation
Hight Efficiency
Sturdy
20A PWM Charge Controller
Reliable Performance
Green Solar System

Specifications:

Acopwoer 100 Watts All Black Mono Solar Panel

Maximum Power at STC (Pmax): 100W
Open-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.48V
Short-Circuit Current (Isc): 6.14A
Maximum Operating Current (Imp): 5.71A
Operating Temperature: -40ºC to 85ºC
Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
Weight: 9.5kg / 20.9 lbs

Acopwer 20 A PWM Solar Charge Controller

Nominal system voltage: 12/24VDC Auto
Rated charge current: 20A
Max. PV Input Voltage: 50V
Battery Start Charging Voltage: 3V
Temperature Compensation Coefficient: -24mV/°C
Operating Temperature: -40°F to 140°F
Grounding: Common negative
Storage Temperature: -40°F to 185°F
Dimensions: 5.59x 3.7x 1.06 inches
Enclosure: IP65

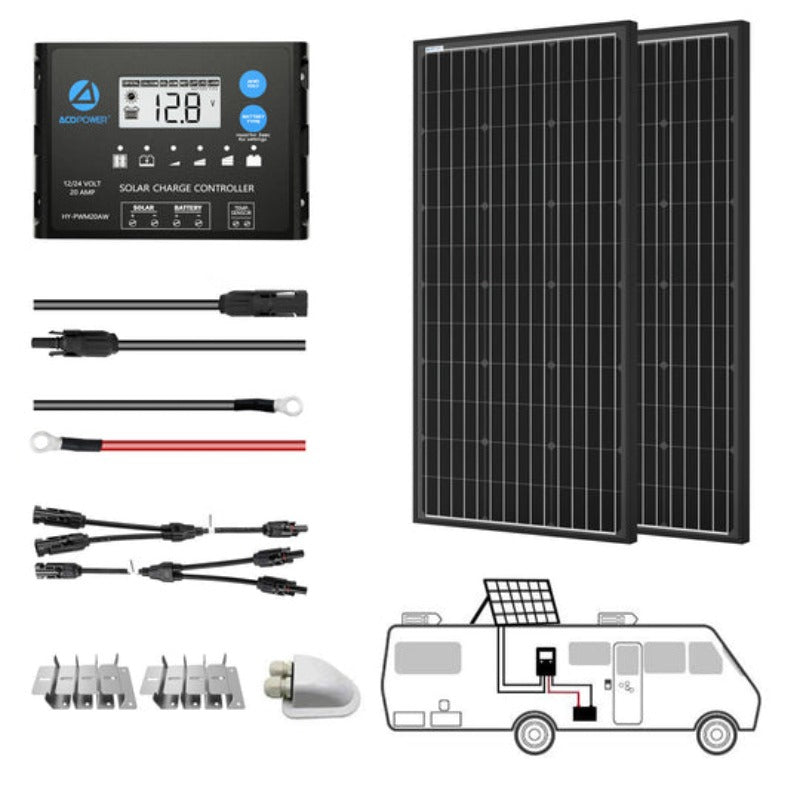

What's in the Box:

2 x Mono Solar Panel
1 x 20A PWM Charge Controller
1 x Sets Mounting Z Bracket
1 x 30ft 12AWG PV Cable

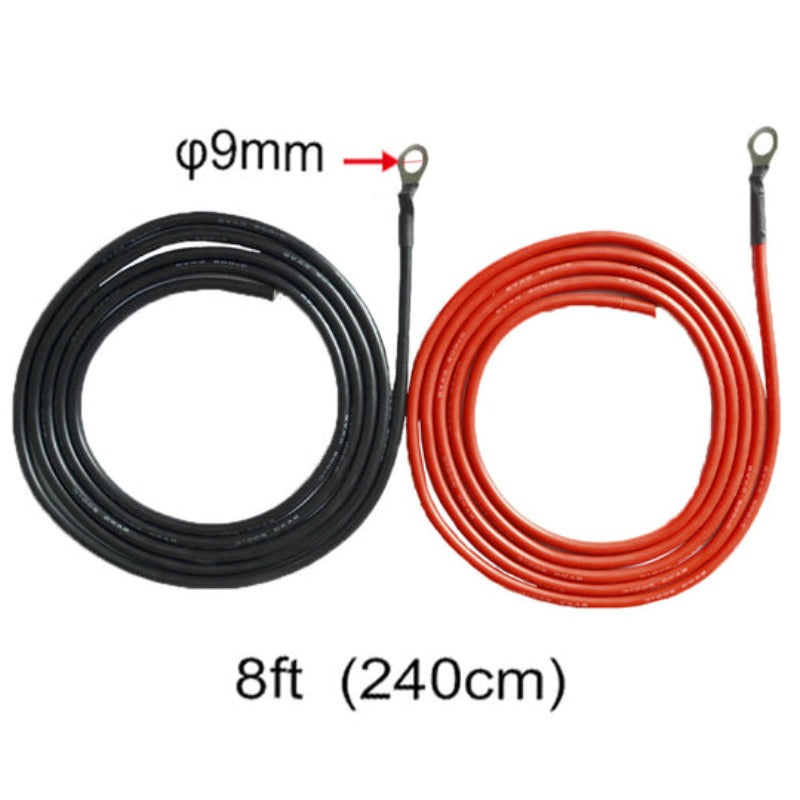

1 x 8FT 8AWG Tray Cable
1 x Cable Entry Housing
1 x Pair T/Y Connector
