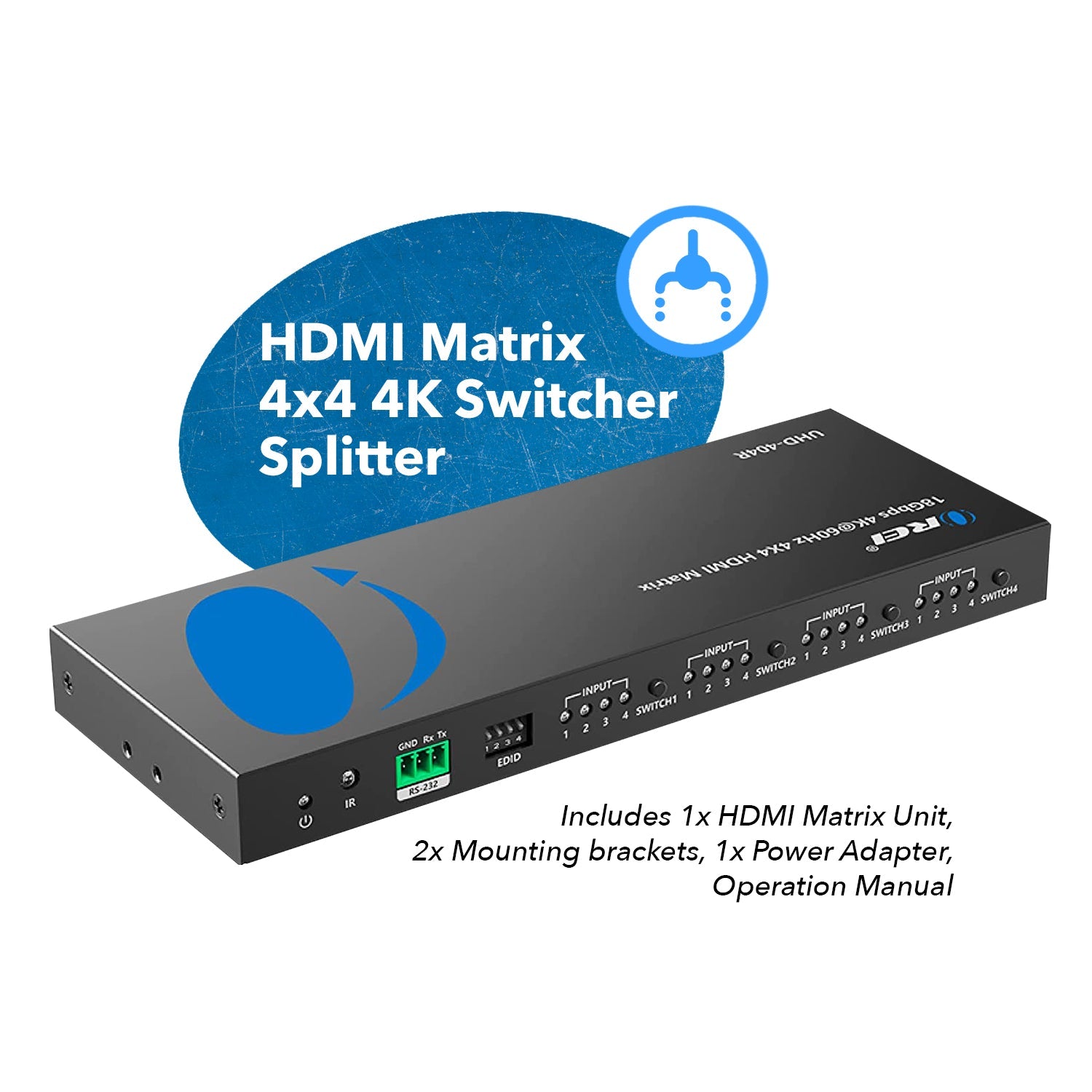

The UHD-404R is a reliable Matrix switch, enabling connection of 4 media devices to 4 displays. It supports video resolutions up to 4K@60Hz and is compliant with HDMI 2.0 and HDCP 2.2 standards, boasting an 18Gbps video bandwidth and HDR10 support. Additionally, it offers downscale functionality for any two of the four outputs simultaneously. Control options include the included remote, front-panel buttons, or RS-232. Ideal for both commercial and home theatre setups.
[shortdes]
[/shortdes]
[tab]
| INPUT: | 4 × HDMI [Type A, 19-pin female] | |
| OUTPUT: | 4 × HDMI [Type A, 19-pin female] | |
| CONTROL: | 1 × RS-232 [3-pin Phoenix connector] |
| 1x UHD-404R |
| 1x Remote |
| 1x Mounting ears |
| 6x Screws |
| 2x Grounding Screws |
| 1x RS-232 3-pin Phoenix connector |
| 1x Power Adapter |
| User Manual |
| HDMI 2.0 / 2.1 | We recommend using high-quality HDMI 2.0 / 2.1 cables under 30 feet for optimum performance |
| 4K@60Hz: | 30 Feet |
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4K@60Hz |
| CEC: | No |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | Yes |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | Yes |
| HDMI Audio Formats: | LPCM7.1, DTS-HD, DTS-Audio, Dolby Digital Plus, Dolby TrueHD 7.1, Dolby Digital 7.1CH, and Dolby Atmos |
| HDMI Compliance | HDMI 2.0 |
| HDCP Compliance | HDCP 2.2 |
| Power Consumption: | <4W (Max) | |
| Power Supply: | Input: AC 100-240V 50/60Hz | |
| Output: DC 5V/1A |
| Length: | 210mm / 8.27in | |
| Width: | 80mm / 3.15in | |
| Height: | 21mm / 0.83in | |
| Weight: | 375g / 13.22oz |
| Color: | Black |
| Housing: | Metal Enclosure |
| 1-Year Manufacturer's Warranty |
[/tab]
