Acopower 100W poly200Ah/1.5kW(2x100Ah) Li200Ah P800w

Versatile Application

This Solar RV kit, ranging from 800W, is perfect for establishing an off-grid 12-volt Lithium battery 12V Solar Panel system. The 1500-watt Pure Sine Wave Inverter delivers ample AC power (120VAV) to operate household appliances, while the battery bank ensures a consistent energy supply for moderate use. Designed to meet the energy needs of RVs, cabins, homes, and boats, and serve as a reliable backup in remote power scenarios.

Efficient MPPT Controller

The 60A MPPT Charge controller boasts a peak conversion efficiency of 98% and a high Tracking efficiency of 99%. Featuring a 4-stage battery charging process, it ensures swift, efficient, and secure battery charging. Solar charging between 200W-800W provides approximately 960Wh-3840Wh (Watt-hour) or 80Ah-320Ah (Ampere-Hour) of charge per day, depending on sunlight availability.

High-Capacity Li-Battery Packs

Equipped with 2560Wh-3840Wh of 2 100Ah lithium batteries, these packs demonstrate higher charging/discharging efficiency and endure over 3000 deep cycles, surpassing lead-acid batteries. The built-in BMS (battery management system), coupled with the 60A MPPT solar charge controller, ensures double protection, preventing damage to the lithium battery.

Ready for Installation

This all-inclusive kit provides everything you need to DIY your solar charge system. The kit includes 8pcs 100 Watt Polycrystalline Solar Panels, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.

Specifications:

12V 100Ah LiFePO4 Deep Cycle Lithium Battery

• Rated voltage: 12.8V
• Charge voltage: 14.2 - 14.6V
• Battery Capacity:1280WH
• Depth of Discharge (DoD): 100%
• Standard charge current: 20A
• Max continuous charge current: 50A
• Max continuous discharge current: 100A
• dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
• Approx. Weight: 23.8lb

100W Poly Solar Panel

• Nominal for 12V battery charger
• Peak Power (Pmax):100W
• Peak Circuit Voltage(Voc):22V
• Max Power Voltage(Vmp):17.48V
• Short Circuit Current(Isc):6.21A
• Max Power Current(Imp):5.72A
• Weight:17.6lb
• Dimension:40.2*26.4*1.4 Inch
• Application Class: Class A

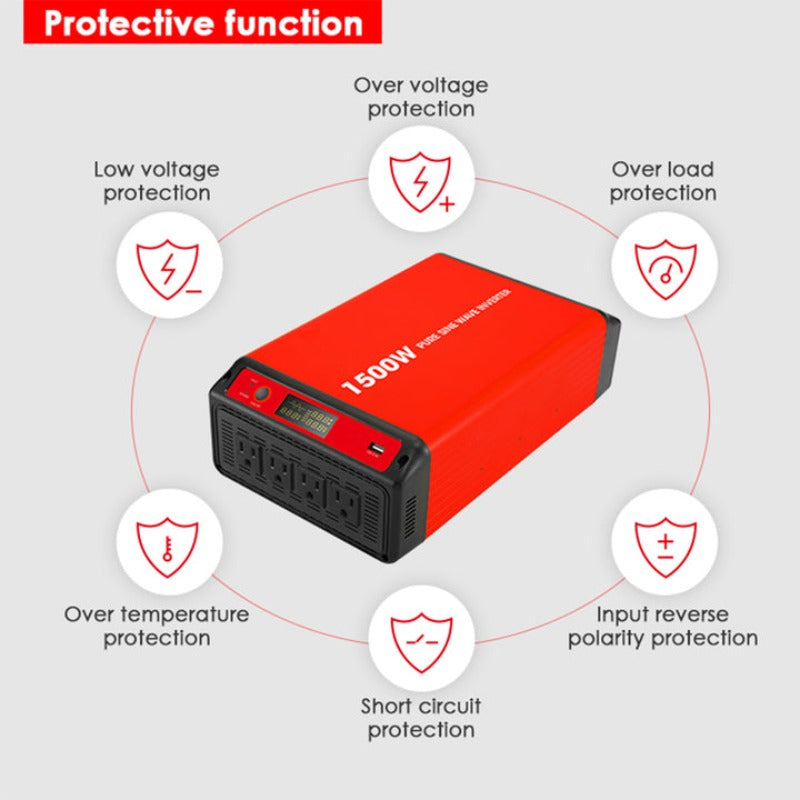

1500W Pure Sine Wave Inverter

• Continuous output 1500W
• Surge Power 3000W
• Wave Form: Pure Sine Wave
• Protection: Under voltage protection, Overvoltage protection, Overload
• Protection, Output short circuit protection
• Weight: 7.79lb
• Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

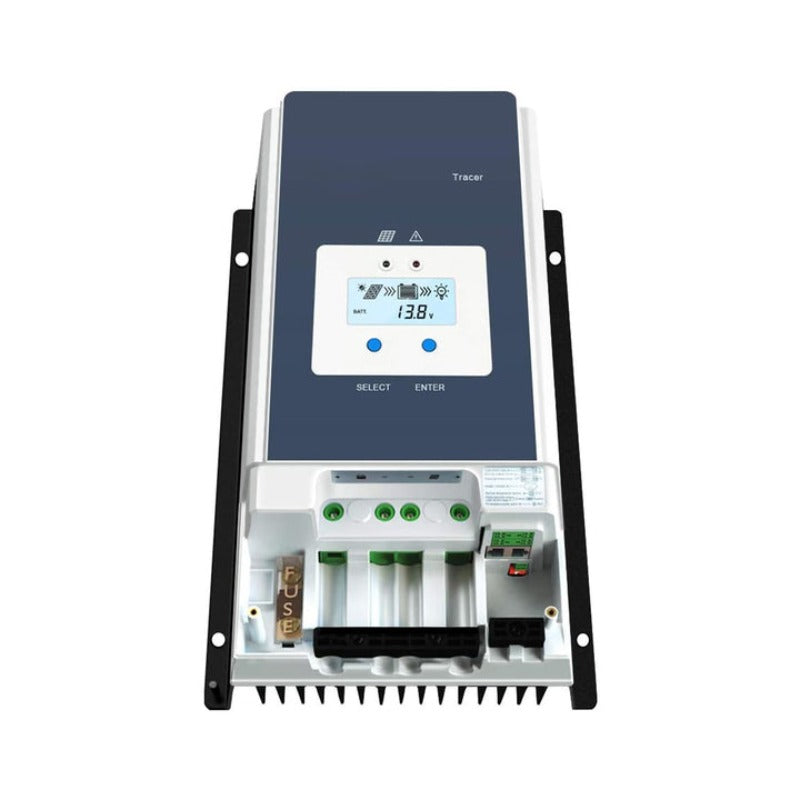

MPPT Solar Charge Controller 60A

• Rated charge current: 60A
• Battery voltage range: 8V~68V
• Max.PV open circuit voltage: 150V
• Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
• Compatible with Various Deep Cycle Battery options:Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

What's in the Box:

2 x Battery

8 x 100W Solar Panel

1 x 1.5K Inverter

1 x 30A Controller

1 x Monitor

1 x Switch

1 x 60A Fuse

8 x sets z Brackets

2 x Pairs Battery Cable
