A wall-mountable solar charge controller, the Acopower Midas 30A MPPT is exclusively engineered for your Midas Y Series. Acopower's Maximum Power Point tracking (MPPT) is hailed for 98% peak conversion efficiency with ultra-fast tracking speed that efficiently combines accurate recognizing and tracking of multiple power point.

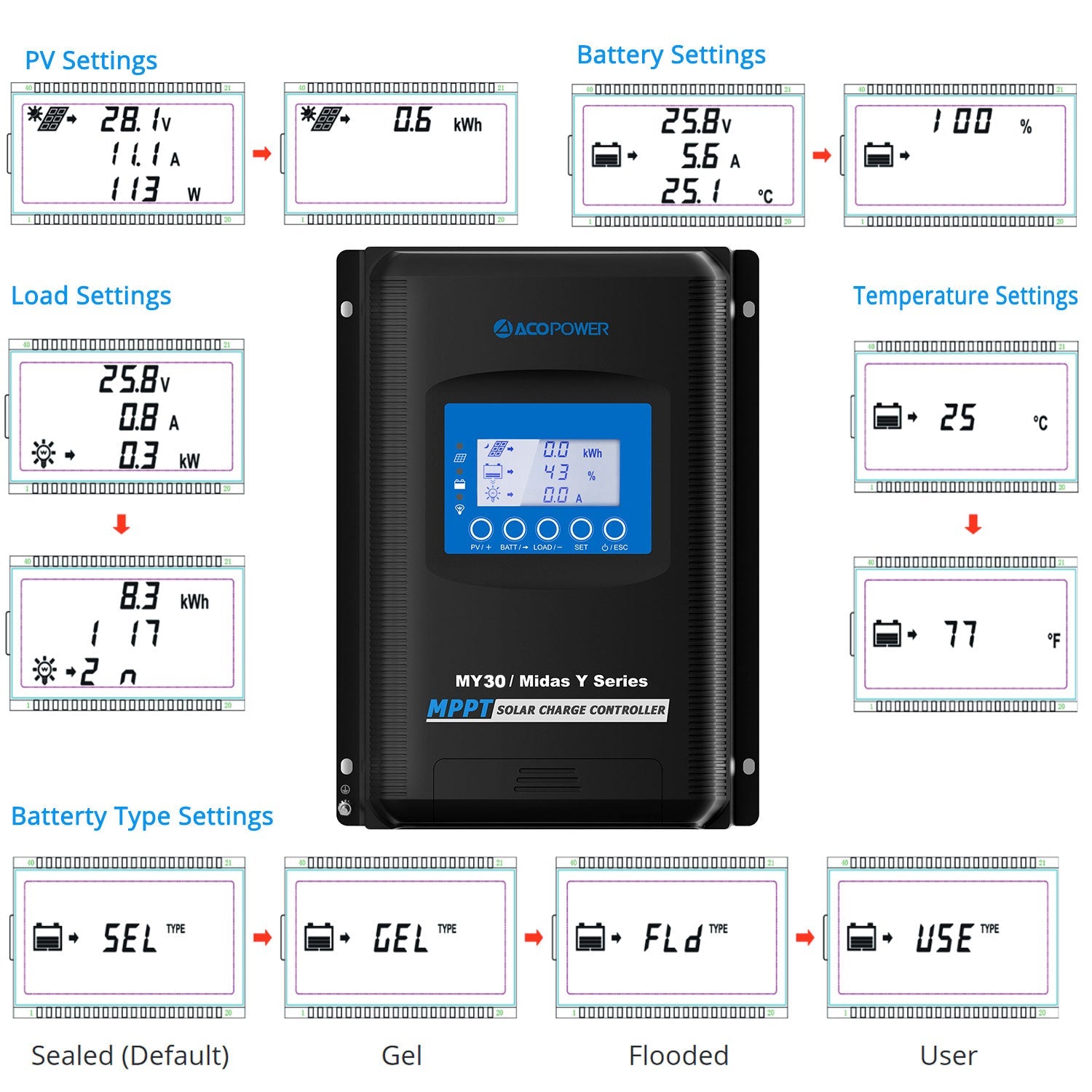

From regular home applications to your wildest outdoor adventures, add the touch of supreme solar power with Midas 30A. Our innovative MPPT is an intuitive design with multi-functional LCD giving real-time updates of operational data, system working status and energy statistics recording.
Compatible with sealed/AGM, gel, flooded, Lithium-ion, LiFePO4 and user batteries, Midas 30A is a negative ground controller, compatible with any negative ground system. Its continuous charging capacity regulates voltage and current coming from your solar panel especially when you are off-grid.
Nominal System Voltage: 12/24VDC Auto
Battery Input Voltage Range: 8V～32V
Battery Type: 1. Lead-acid battery including Sealed (default), Gel, Flooded and User; 2. Lithium Battery including LiFePO4, Li and User
Rated Charge Current: 30A
Rated charge Power: 390W/12V 780W/24V
Max. PV Open Circuit Voltage: 100V (1) 92V (2)
MPPT Voltage Range: (Battery Voltage+2V) ~72V
RS485 Interface: 5VDC/200mA(RJ45)
Electronic Protections: PV Reverse Polarity, PV Short Circuit, PV Over Current Alarm, Battery Overcharge, Battery Over Discharge, Battery Reverse Polarity, Load Short Circuit, Load Overload, Overheating
1 x Midas 30A MPPT Solar Charge Controller
1 x User Manual
