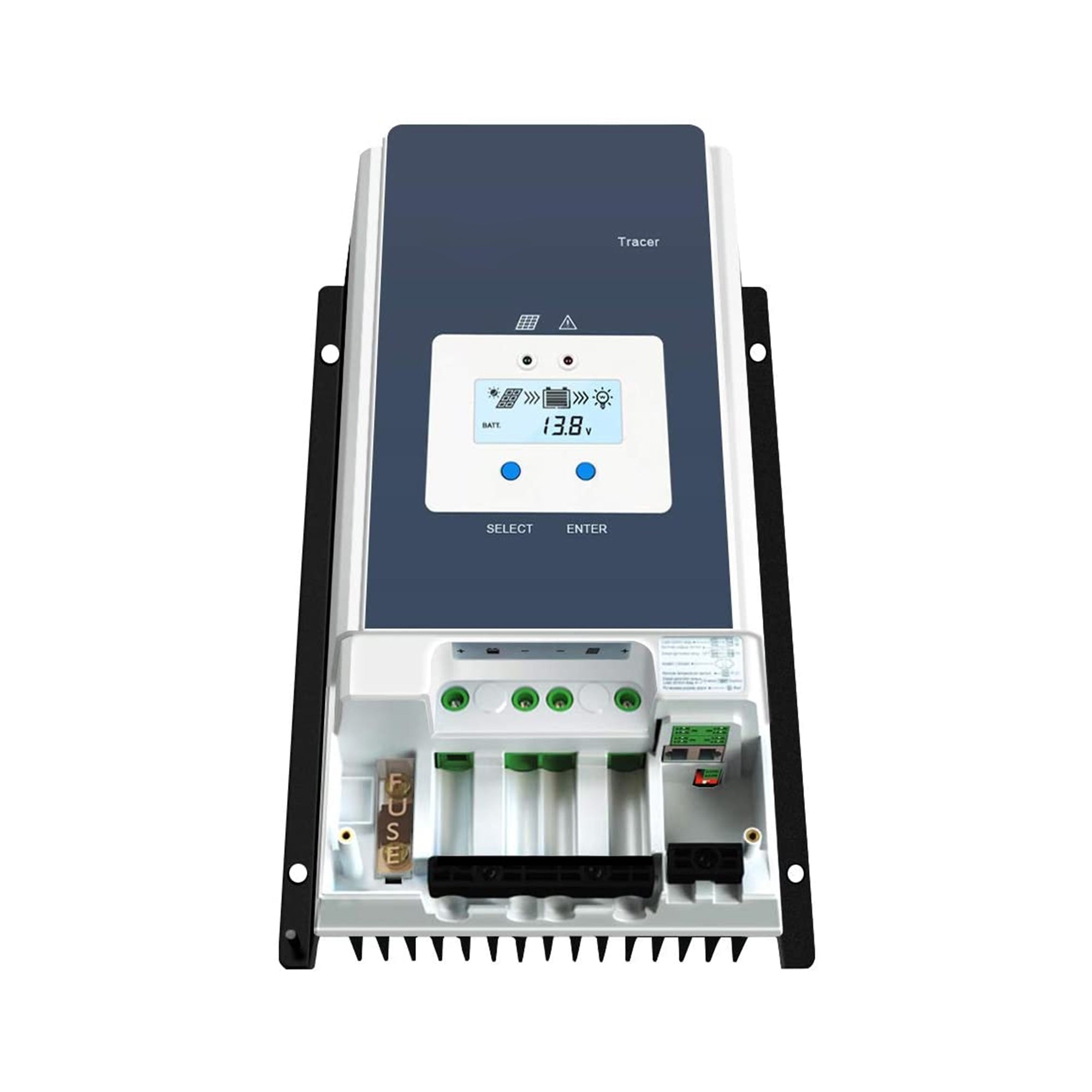

Refine your solar energy system with Acopower 60A MPPT Solar Charge Controller, a superior quality, low failure charge controller that effectively regulates voltage and current flowing from the solar panel to the battery.
Acopower's solar charge controller provides maximum power point tracking with accurate, auto identification of 12V/24V/36V/48V system voltages. With a transfer efficiency of 98.6% our advanced MPPT technology comes with multiple load control modes. Get real-time energy recording on the brightly backlit LCD display.
Acopower's solar charge controller supports multiple charging options including sealed, gel, flooded and user batteries. An auto control system is in place to limit the charging power and current lest there is an overload.
Loaded with an isolated RS485 interface with standard MODBUS communication protocol and a 5V power supply allows you to expand your application. Well-suited for solar, RV, household systems and field monitoring, in parallel, Acopower's 60A MPPT can support up to 8 charging gadgets.

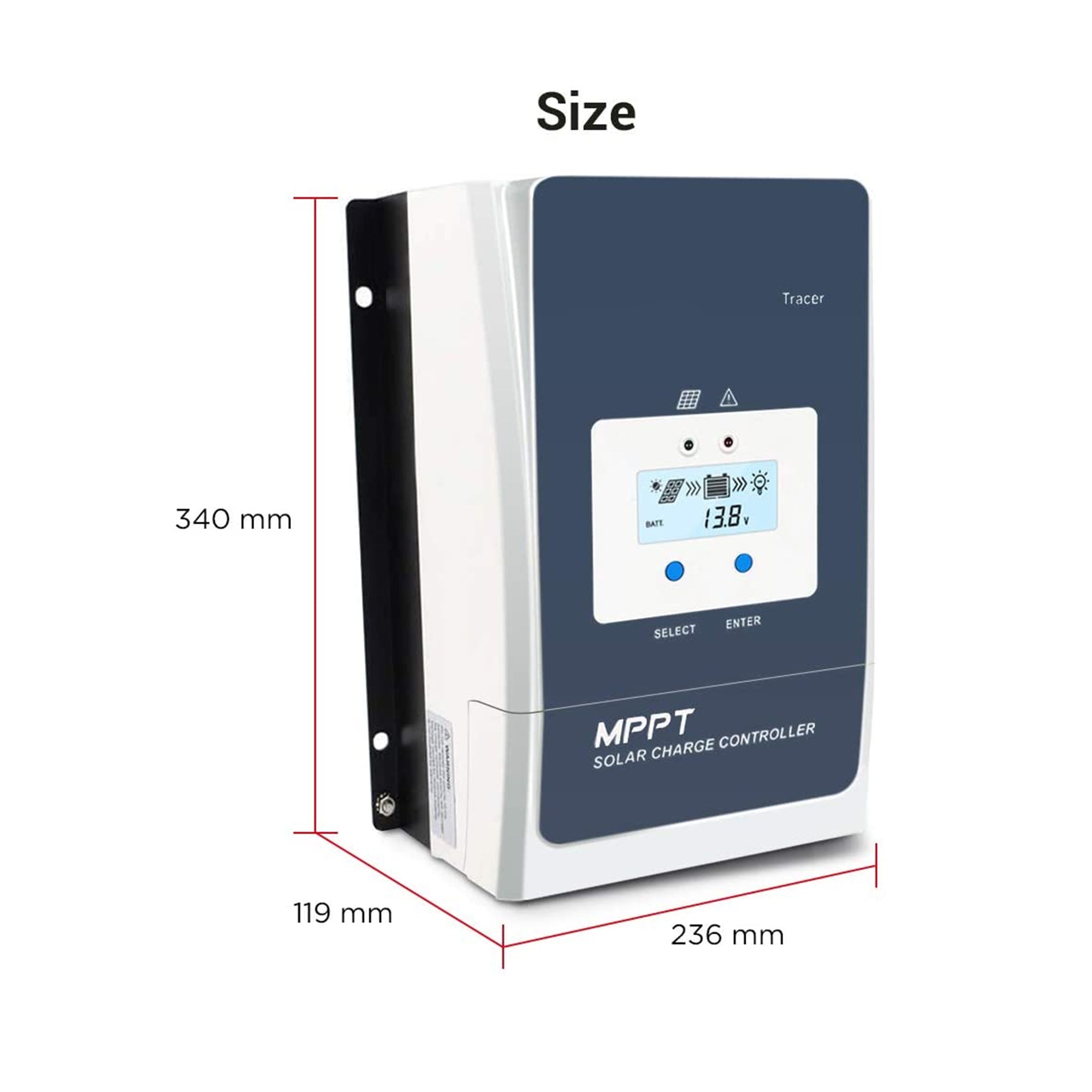

Dimensions: 13.39 x 9.29 x 4.72 in.
Weight: 7.7 pounds
Voltage: 12 V
Rated Charge Current: 60 Amp
Battery Input Voltage Range: 8V～68V
Max. PV open circuit voltage:150V/138V
MPP voltage range: V(BAT)+2V～108V
Max. PV input power: 750W/12V, 1500W/24V, 2250W/36V, 3000W/48V
Battery type: Sealed(Default)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
1 x 60A MPPT Solar Charge Controller
1 x User Manual
